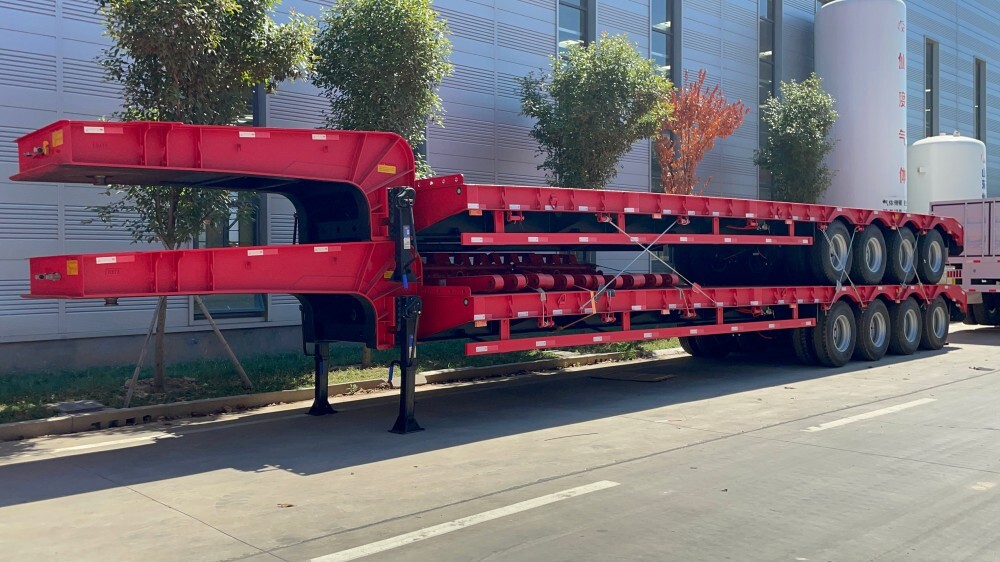

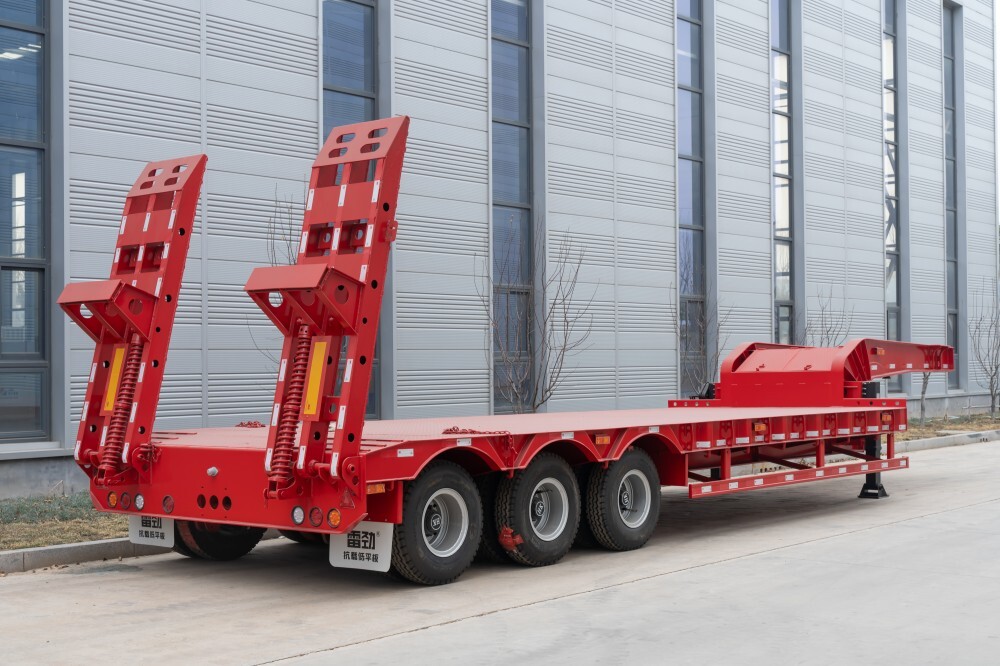

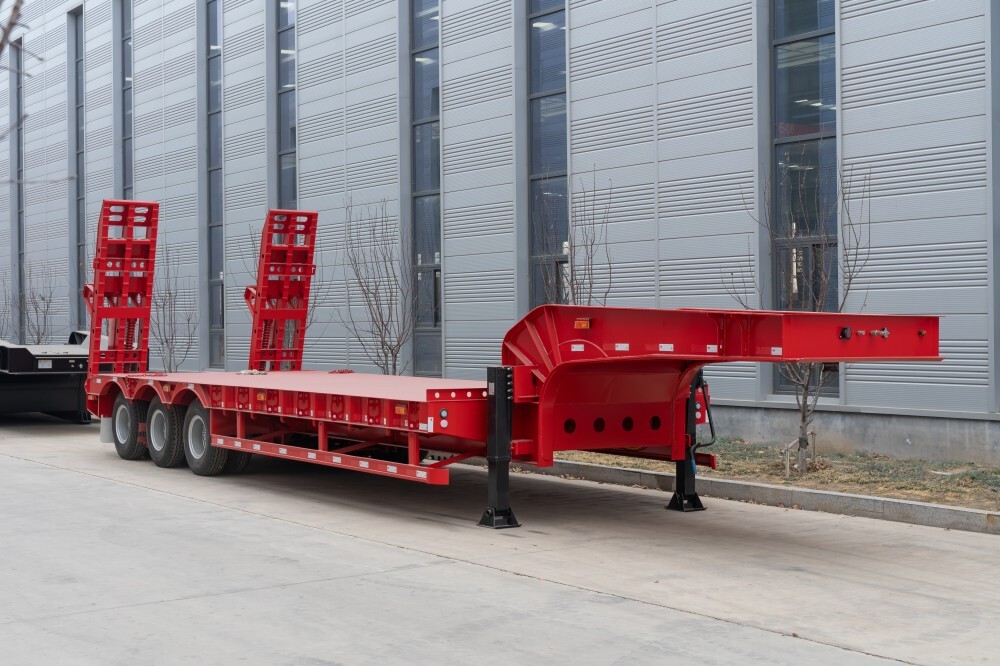

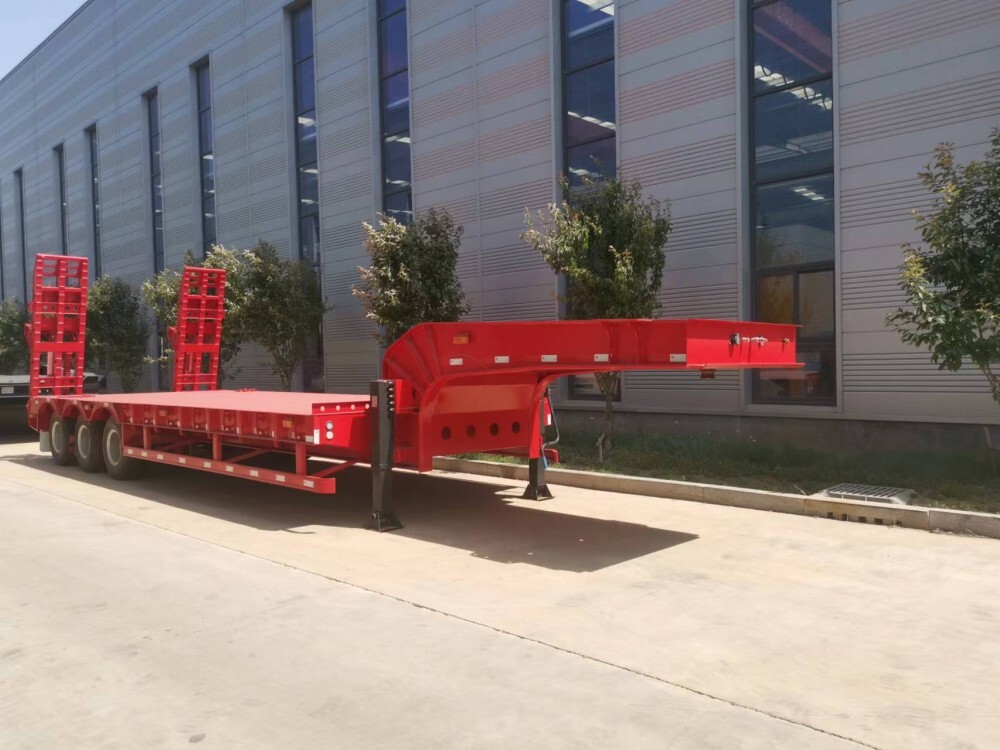

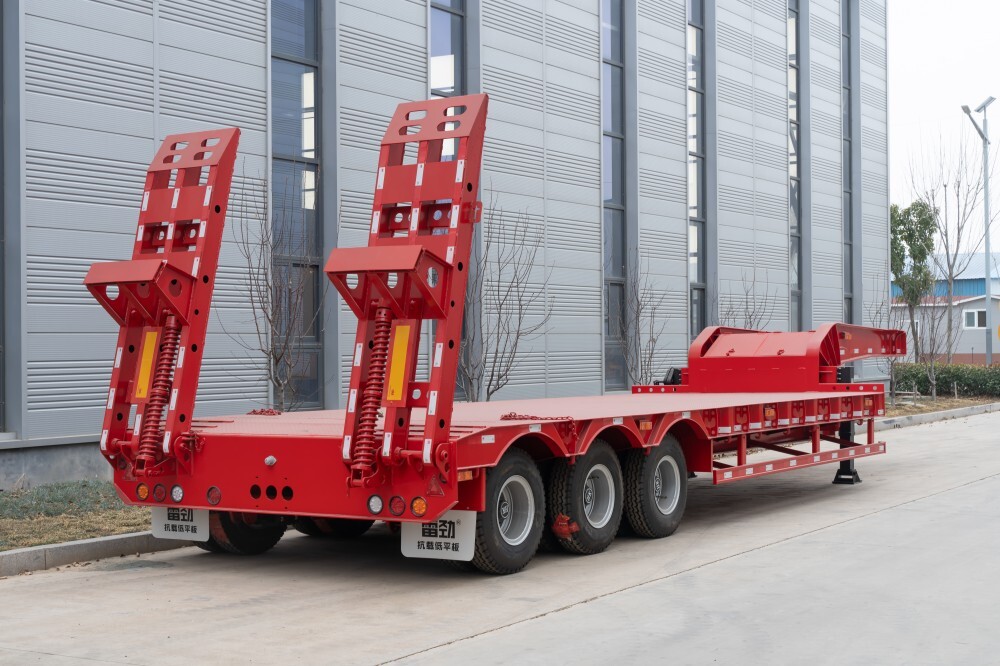

lowbed trailer 60 ton/lowboy trailer 60 ton/gooseneck flatbed trailer

Shandong Hezhong’s lowbed semi trailer has advanced technology and reliable performance. It is suitable for highway, railway, waterway and port transitional transportation, heavy duty vehicle and equipment transportation, and transportation of special materials.
Tel:+86 15269108961
Email:owen@vehiclemaster.com
WhatsApp:+86 15269108961
PRODUCT DESCRIPTION

Shandong Hezhong’s lowbed semi trailer has advanced technology and reliable performance. It is suitable for  highway, railway, waterway and port transitional transportation, heavy duty vehicle and equipment  transportation, and transportation of special materials.

Raw material resource of Shandong Hezhong guarantees quality. All of our parts are produced with material  are hand-picked, inspected, and purchased from reputable domestic or foreign suppliers to maintain the  highest quality standards and product performance.

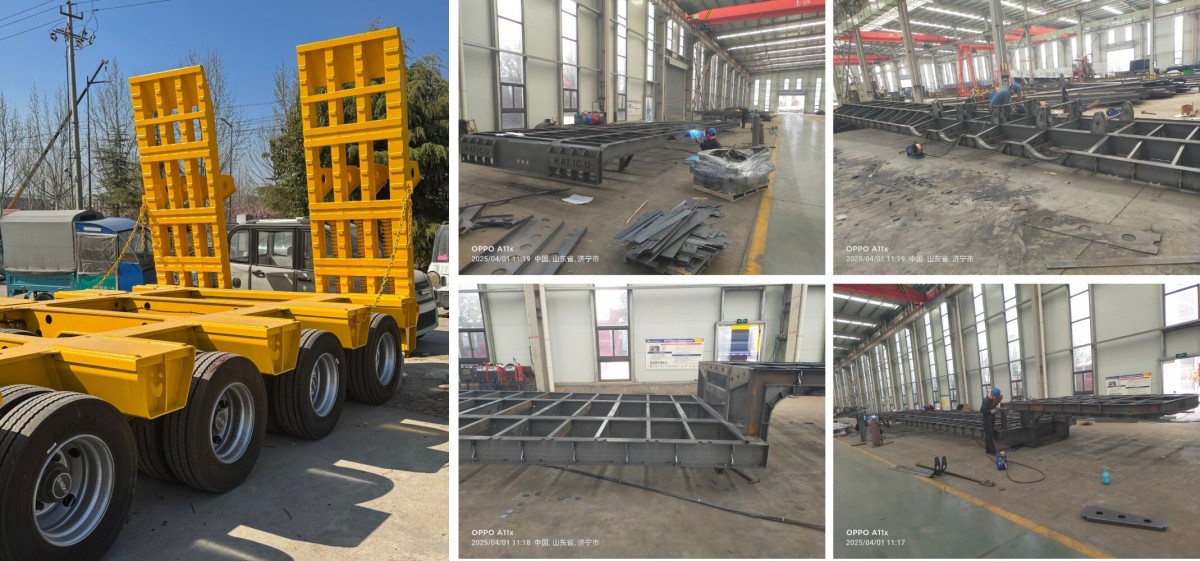

During production, advanced manufacturing technology such as automatic submerged-arc welding for  vertical beam is used. The shot blasting treatment for integral frame removes welding stress effectively,  while advanced equipment and technology is applied during the whole production process to ensure  consistent formation and accurate assembly.




Introduction of Lowbed Semi Trailer



ApplicationCooperation
Heavy Equipment TransportationOEM Cooperation Available
Construction Vehicle TransportationCKD Cooperation Available
Heavy Duty Cargo TransportationSKD Cooperation Available
Feature and Benefit Overview
FEA- Finite Element analysis used in vehicle to promote product performance.Electrophoresis Painting is applied so resistance and painting effect can last for over 10 years.
High strength full thickness steel and titanium content of 0.98% ensure beam and frame's strength.42 tough ribs design ensures the safety and carrying capacity.
Specially designed anti tire abrasion suspension system prevents tire offset after loading.National level welding supervision; 30 minutes per process longer than normal welding time.
Uniquely designed low-load platform provides lower transport center of gravity and smoother travel.Different types lowbed semi trailer can satisfy customers with different requirements and needs.

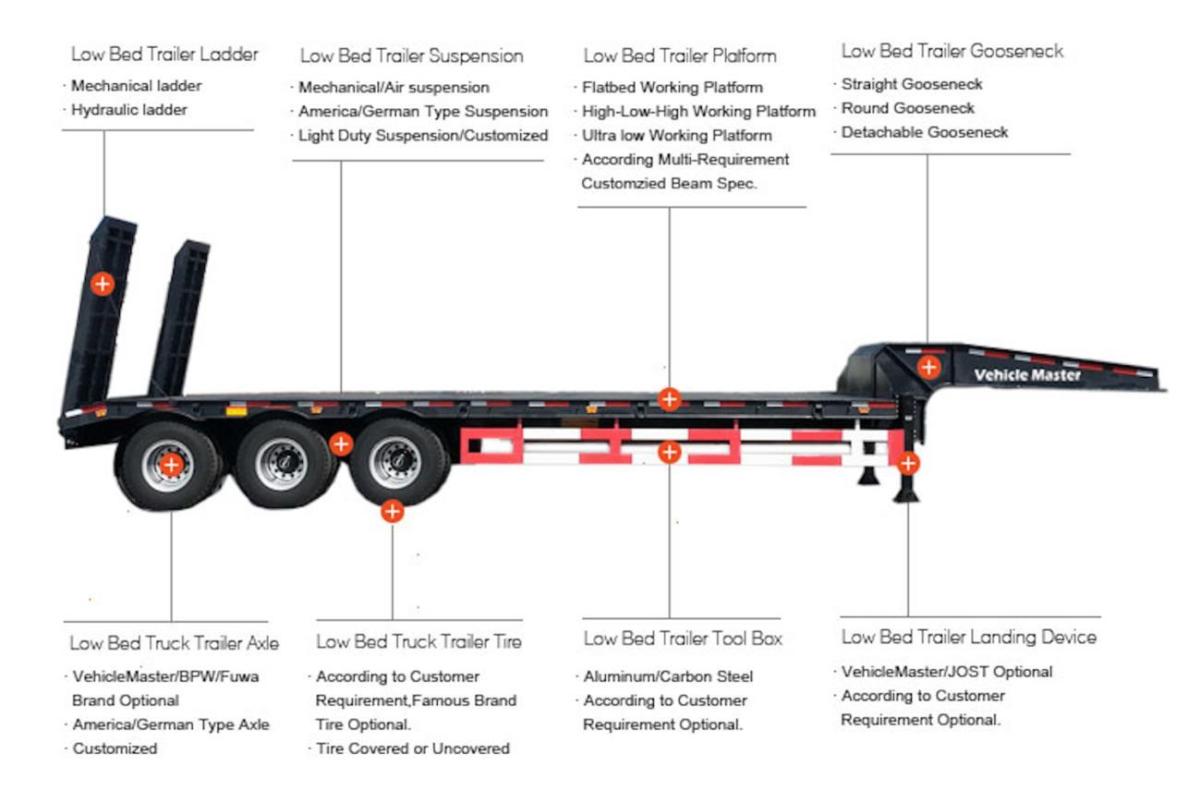

Introduction of Lowbed Semi Trailer.JPG

Specification of Lowbed Semi Trailer



3 Axle4 Axle
Brand:Shandong HezhongShandong Hezhong
Application:Heavy Duty LoadingHeavy Duty  Loading
Axle:3 Axles4 Axles
Loading Capacity:30-120Tons30-150Tons
L*W*H:13000*3000*1760mm13000*3000*1760mm
Ladder:Mechanical Spring/HydraulicMechanical Spring/Hydraulic

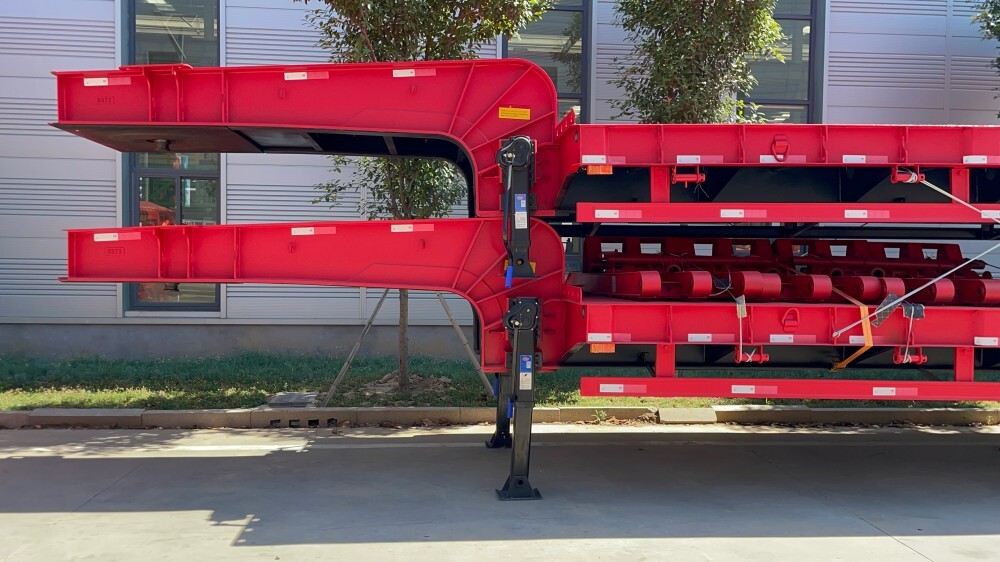

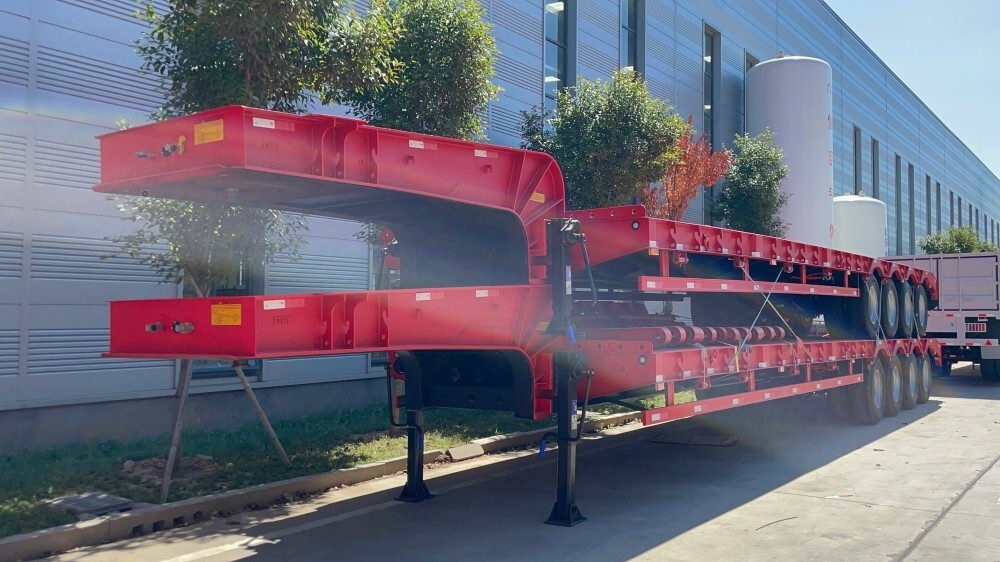

Goose Neck Detachable:AvailableAvailable
Multi-Axles:AvailableAvailable
Steering Axles:AvailableAvailable
Tire Style:Covered or UncoveredCovered or Uncovered

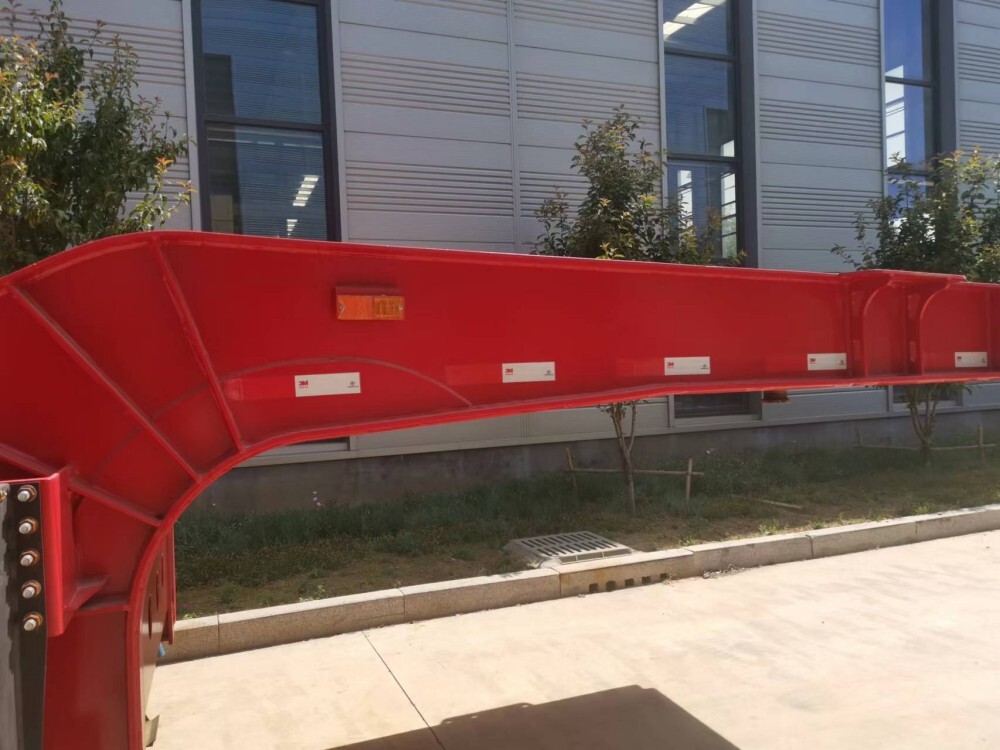

Main BeamMaterial: Q345/T700
Height: 500mm
Upper Plate: 24mm
Middle Plate: 14mm
Lower Plate: 26mm
Platform Thickness:4mm
Axle:3/4 Axles *13/16 Ton Shandong Hezhong/FUWA/BPW/Other

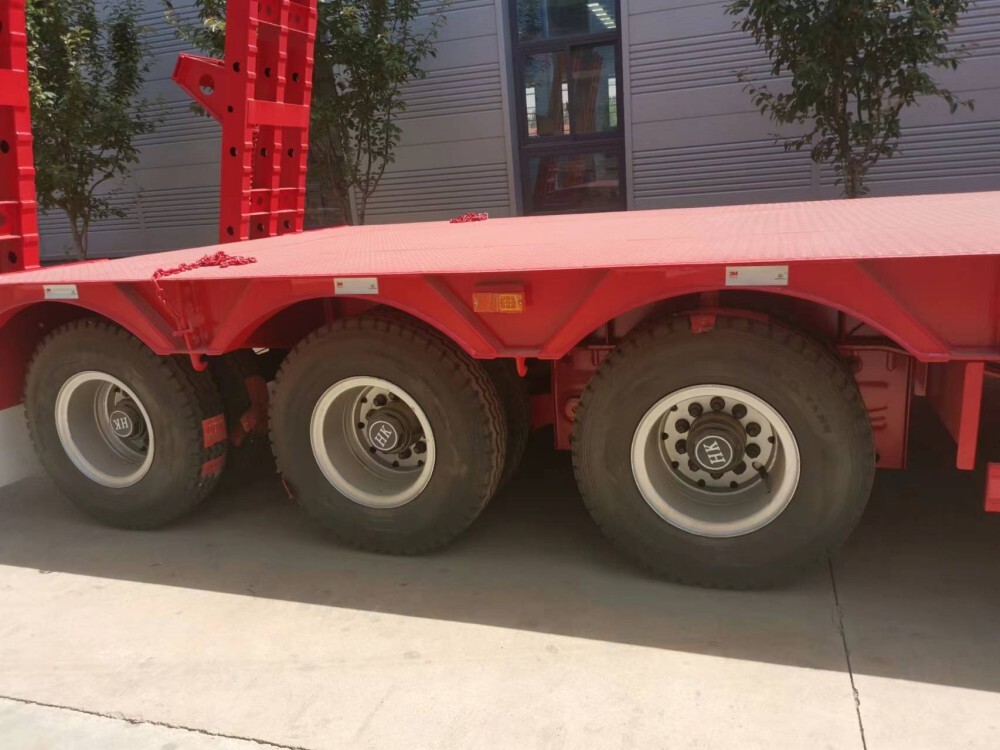

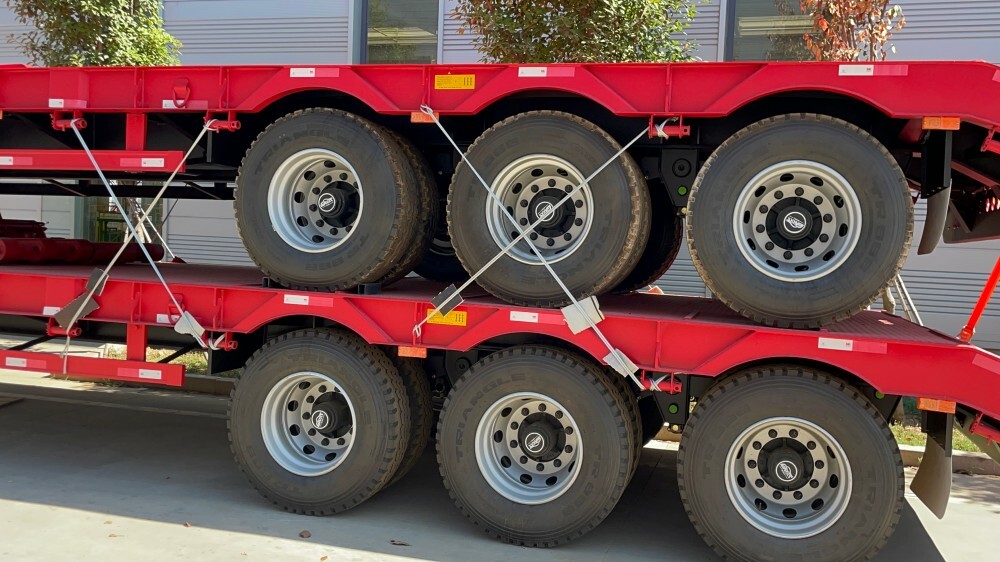

Tire:12R22.5/8.25r20(12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
Rim:9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum
Leaf Spring:90mm*13mm*10/90mm*16mm*10Pcs
Suspension System:Mechanical/Air Suspension
Ladder:Mechanical Spring/Hydraulic
King Pin:#50(2")/#90(3.5") JOST/Other Brand,Changeable
Landing Gear:28 Tons Two Speed JOST/Other Brand
Tool Box:Steel/Aluminum
Widened PartsAvailable
PaintingPolyurethane combination painting


Please note that these parameters may vary depending on the specifc manufacturer and model of the 3 Axle Low Bed Semi Traier.Aditonall,some tralers may haveadditional fealures ike a detachable goseneck, sel-steenng axes, or an extendable deck to acommodate lonoer caroo. The caring capacity of a 3 Axle Low BedSemi Trailer also depends on the size and weiaht of the carao being transported.

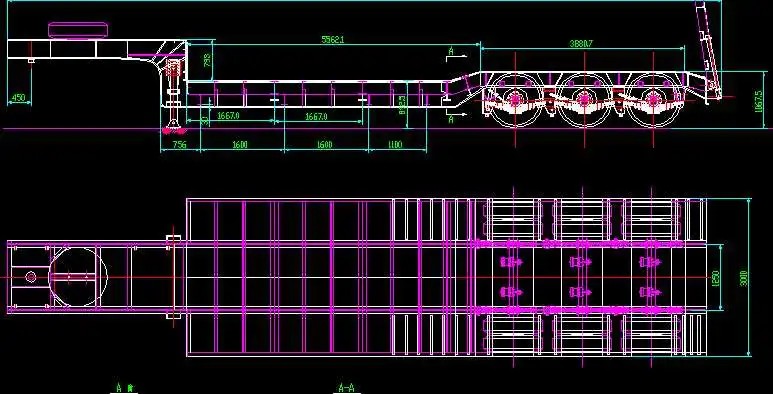

Skeleton Semi Trailer.png

vehicle details
  • details (4).jpg
  • details (3).jpg
  • details (1).jpg
  • details (9).jpg
  • details (8).jpg
  • details (7).jpg
  • details (5).jpg
  • details (13).jpg
  • details (11).jpg
  • 1 (5).jpg
  • 1 (1).jpg
  • 1 (2).jpg
  • 1 (3).jpg
  • 1 (4).jpg
  • details (1).jpg
